Rubber Extruder Sheet Preforming Machine

Rubber extruder sheet preforming machine is the downstream equipment of rubber internal mixer, and it is high efficiency rubber sheet extruding machine special for internal mixer or kneader mixer. It is used for forced rubber sheet extrusion of rubber and plastics, synthetic resign, and other nonmetal material.

Send Inquiry

Product Introduction

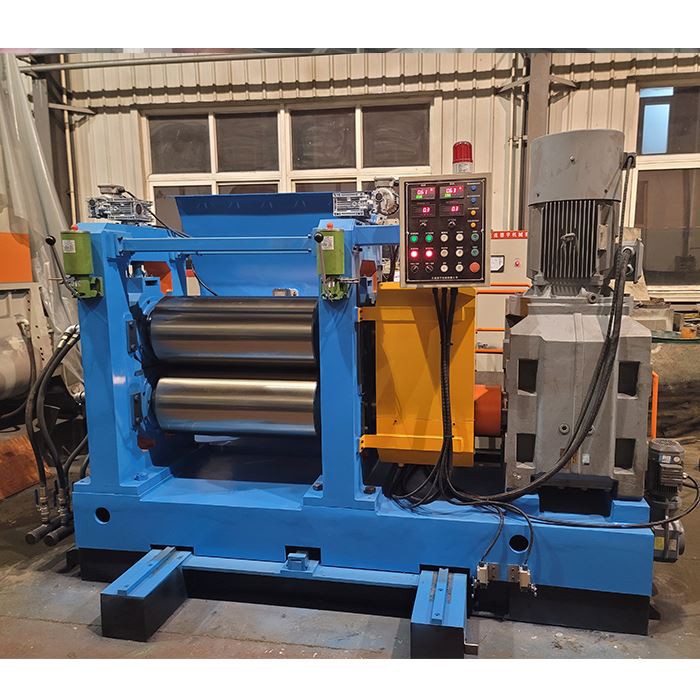

rubber extruder sheet performing machine

1. This machine consumes low energy, and it has simple structure, good self-cleaning property, long useful life, high automation degree, simple operation, low noise, no environmental pollution, small occupied land area, and convenient maintenance, etc.

2. Both screws have single head, variable pitch, and variable depth structure, conical propulsion. Two screws rotate oppositely, and engage each other as a whole. Both of the screws are installed at an angle and use flat-opening nozzles, so that the materials are extruded more flatly and smoothly, material extruding and conveying capacity is greatly improved.

3. The machine barrel has a large opening and its bottom has a downhill structure. The feeding barrel wall is jacket-type welded structure, and the sheeting extruding rollers are bored rolls, temperature can be adjusted and controlled by cooling with water or heating with hot oil, hot water or steam, to meet the process requirements of different materials.

4. The sheeting device is installed on the rack and slideway of feeding device base, and it can be moved horizontally through a manual or pneumatic mechanism to realize its separation and reunion, facilitating the cleaning or replacement of feeding head.

5. Both of the feeding device and sheeting device use AC frequency conversion technology, to adapt to the process requirements for rubber sheet or resin sheet production lines, realizing stepless speed adjustment.

6. The working surface of various of machine parts contacting with materials are plated with hard chrome, so they are abrasion resistant and corrosion resistant, and have long service life.

7. The electrical control system uses PLC control, so it can realize both single machine control and interlock control with sheet production line. Also, this machine is equipped with ultrasonic level sensor and pressure sensor, which can directly detect and control the screw and roller speed, matching the speed.

SPM

Model	XJY-SZ280x110	XJY-SZ335x135	XJY-SZ400x150	XJY-SZ602x250	XJY-SZ743x330
Screw shape	Variable pitch and depth, conical	Variable pitch and depth, conical	Variable pitch and depth, conical	Variable pitch and depth, conical	Variable pitch and depth, conical
Screw quantity (pcs)	2	2	2	2	2
Arrange of screw central line	With angle	With angle	With angle	With angle	With angle
Screw diameter (mm)	φ280xφ110	φ235xφ135	φ400xφ150	φ602xφ250	φ743xφ330
Screw speed (rpm)	2.2-22	2.2-22	2.2-22	2.2-22	2.2-22
Extruding motor power (kw)	18.5	30	37	90	132
Roller size Dia.xLength (mm)	φ300x420	φ360x530	φ360x820	φ400x800	φ450x1000
Sheeting roll speed (rpm)	2.5-20	2.5-25	2.5-25	2.5-25	3.2-32
Roller nip adjustment range (mm)	0.2-8	0.2-8	1-8	3-10	3-10
Stock guide distance (mm)	300	400	500	550	600(650,700,750)
Roller sheeting motor power (kw)	5.5	15	18.5	45	55
Feeding method	Dead weight	Dead weight	Dead weight	Dead weight	Dead weight
Average capacity (tons/h)	0.5-0.8	1.5-2	3	6	9
Cooing water consumption (m3/h)	≈8	≈15	≈20	≈30	≈30-45
Overall dimensions (mm)	2550x2240x1780	2800x2450x2200	3385x2500x1725	4570x4320x2270	4850x5300x2560
Gross weight (excluding main motor) (tons)	≈6.5	≈9	≈10	≈25	≈30
