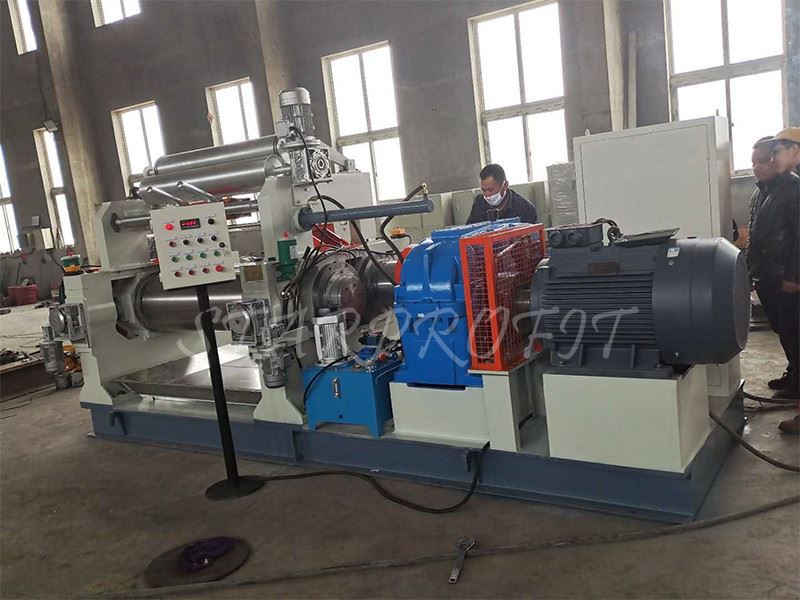

Two Roll Rubber Mill
Two roll rubber mill is used for plasticating and mixing rubber or plastics. Warming and sheeting rubber compounds, cracking and refining reclaimed rubbers.
The roll material is chrome chilled cast alloy iron with hard and wear resistant on surface. Roll structure adopts drilled type or hollow type to heat or cool, to make the roll surface temperature evenly.
There is hydraulic braking device on the two roll rubber mill. When emergency incident occurred, press the button, then the machine brake, which is safe and reliable.
Nip adjustment is by motor or by hand, easy to operate. Rolling bearings are fixed on roll ends, lower in energy consumption, easy for maintenance and longer in service life.
Transmission system adopts hardened gearbox reducer, compact structure, lower noise and high efficiency.
Model | XK- 160 | XK-250 | XK-360 | XK-400 | XK-450 | XK-550 | XK-560 | XK-610 | XK-660 | XK-710 | |
Roll diameter (mm) | 160 | 250 | 360 | 400 | 450 | 550 | 560-510 | 610 | 660 | 710 | |
Roll working length (mm) | 320 | 620 | 900 | 1000 | 1200 | 1530 | 1530 | 1930 | 2130 | 2200 | |
Front roll linear speed for open mill (m/min) | 9 | 16.3 | 16.7 | 18.65 | 21.8 | 28 | 26.4 | 30.5 | 28 | 31.9 | |
Font roll linear speed for sheeting mill (m/min) | - | - | - | 21.9 | 25.6 | 31 | - | 30 | 31.6 | 30.26 | |
Speed ratio of rolls | 01:01.4 | 01:01.1 | 1:1.25 | 01:01.3 | 01:01.3 | 01:01.2 | 01:01.2 | 01:01.1 | 01:01.2 | 01:01.5 | |
Max. roll gap (mm) | 4.5 | 8 | 10 | 10 | 12 | 16 | 15 | 15 | 15 | 15 | |
Feeding capacity (Kg) | 1-2 | 10- 15 | 20- 25 | 18-35 | 50 | 50-65 | 50-65 | 140 | 165 | 190 | |
Main motor power (Kw) | AC5.5 | AC18.5 | AC30 | AC45 | AC55 | AC110 | AC90 | AC 160 | AC 185/250 | AC280 | |
Overall dimensions (mm) | L | 1133 | 3200 | 4200 | 4471 | 5005 | 6300 | 6050 | 6575 | 6700 | 8185 |
| W | 920 | 1115 | 1780 | 1850 | 1790 | 2230 | 2282 | 2910 | 3400 | 3910 | |
| H | 1394 | 1345 | 1760 | 1760 | 1830 | 1900 | 1900 | 2000 | 2100 | 2270 | |
Approx. weight (T) | ~2 | ~3.2 | ~6.5 | ~8.3 | ~11.4 | ~22 | ~22.5 | ~44 | ~49 | ~59 | |
Professional and quick response to your questions within 24 hours.
Machine customize is accepted with customer's detailed technical requirements.
Fast delivery to save customer's time.
Full sets of technical documents, instruction manual can be provided.
Professional wooden case packing and ocean shipping control to make your order safe and sound.
After receiving the order, we will communicate with our production department and update production progress to our customer in time.
Good and professional after sale service will eliminate your worry.
One to one patient problem solving if any.
Long guarantee period of the quality will reduce your cost and trouble. Within guarantee period, one to one replacement if any design and manufacturing defects. Beyond guarantee period, we can give the most favorable price of the replacing parts.
