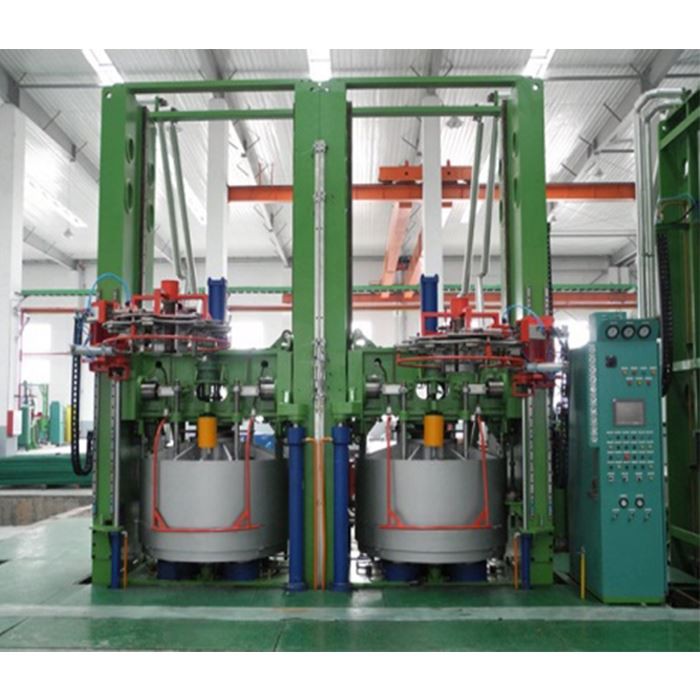

Tyre Curing Press

Tyre curing presses can be used to curing PCR, TBR, OTR,bias tyre, etc.

Send Inquiry

Product Introduction

Product description

Tyre curing press (rubber & tire machinery).

Curing press mainly has following types:

Tyre curing press for PCR and LTR (Mechanical titled type)

This curing press is of mechanical type with the beam moving vertically and tilting over for tyre loading and unloading. The center mechanism is of BOM type and the curing mould is heated by platen. This curing press is equipped with dual-column vertical chuck loader, trolley type dual-cylinder unloading device and pro-bar style mould stripping unit. As per customer’s request, electric mould-adjusting device, SMO driving device, PCI and green tyre holder is available.

This curing press uses PLC for real-time control. It can realize parameters setting during curing cycle and real-time data collection/preservation, alarming, whereby historical parameters intuitive query can also be realized through this system. With Ethernet interface, curing press group management is available.

This curing press is applicable for curing PCR, LTR, and bias tyres with Nitrogen or Steam used as curing medium.

Tyre curing press for PCR and LTR

ITEM		UNIT	SPECIFICATION
			1400		1600	1665		1730
Press size			55’’		63.5’’	65.5’’		68’’
Curing cavity No.			2		2	2		2
Mould Shield ID		mm	Φ1400		Φ1620	Φ1665		Φ1730
Max. mould closing force		KN	2890X2		4300X2	4500X2		5000X2
Mould height		mm	241-500		254-635	400-660		400-750
Center mechanism			BOM		BOM	BOM		BOM
Tyre bead diameters		in	14-20		16-24.5	16-24.5		19-24.5
Max. OD of cured tyre	SGM	mm	Φ970		Φ1135	Φ1225		Φ1260
	2-piece mold	mm	Φ1000		Φ1270	Φ1335		Φ1380
Max. section width of cured tyre		mm	360		450	450		500
Max. green tyre height		mm	600		890	890		1100
Designed mold open/close time		s	60		60	60		90
Max. load of VCL		kg	100		100	100		150
Max. mould weight		kg	4300		5600	6500		6500
Max. external pressure		MPa	1.4
Max. internal pressure		MPa	2.8
Hydraulic water pressure		MPa	2.1-2.5
Compressed air pressure		MPa	0.7
Control air pressure		MPa	0.35
Machine dimensions		m	5.7x5.9x4.5	4.5x5.2x5.0			4.6x5.2x5.0		5.0x5.2x5.0
Max. tyre type			8.25R20	340/85R24			380/70R24		380/85R24

Tyre curing press for LTR and TBR (Mechanical titled type)

This curing press is of mechanical type with the beam moving vertically and tilting over for tyre loading and unloading. The center mechanism is of BOM type and the curing mould is heated by steam dome. This curing press is equipped with dual-column vertical chuck loader, trolley type dual-cylinder unloading device and pro-bar style mould stripping unit. As per customer’s request, electric mould-adjusting device, SMO driving device, PCI and green tyre holder are available.

This curing press is applicable for curing LTR, TBR, and bias tyres with Nitrogen or Steam used as curing medium.

Tyre curing press for LTR and TBR

ITEM		UNIT	SPECIFICATION
			1310	1525	1585		1600		1650
Press size			55’’	63.5’’	65’’		65.5’’		68’’
Curing cavity No.			2	2	2		2		2
Mould Shield ID		mm	Φ1310	Φ1525	Φ1585		Φ1600		Φ1650
Max. mould closing force		KN	2890x2	4220x2	4450x2		4500x2		5500x2
Mould height		mm	241-500	254-635	400-650		400-650		400-750
Center mechanism			BOM	BOM	BOM		BOM		BOM
Tyre bead diameters		in	14-20	16-24.5	16-24.5		16-24.5		22-28
Max. OD of cured tyre	SGM	mm	Φ935	Φ1085	Φ1135		Φ1150		Φ1220
	2-piece mold	mm	Φ1000	Φ1270	Φ1320		Φ1345		Φ1400
Max. section width of cured tyre		mm	350	450	450		450		500
Max. green tyre height		mm	750	890	890		890		1100
Designed mold open/close time		s	60	60	60		60		90
Max. load of VCL		kg	100	100	100		100		150
Max. mould weight		kg	5500	5500	6500		6500		6500
Max. external pressure		MPa	0.7
Max. internal pressure		MPa	2.8
Hydraulic water pressure		MPa	2.1-2.5
Compressed air pressure		MPa	0.7
Control air pressure		MPa	0.35
Machine dimensions		m	5.7x5.9x4.5	4.5x5.2x5.0		4.6x5.2x5.0		4.6x5.2x5.0	4.9x6.5x5.3
Max. tyre type			7.5R20	11.00R20		425/65R22.5		445/65R22.5	440/65R28

Tyre curing press for LTR and TBR (Mechanical horizontal type)

This curing press is of mechanical type with the beam moving vertically and tilting over for tyre loading and unloading. The center mechanism is of BOM type and the curing mould is heated by platen. This curing press is equipped with single or dual-column vertical chuck loader, trolley type dual-cylinder unloading device and pro-bar style mould stripping unit. As per customer’s request, auto mould-adjusting device, SMO driving device, PCI and green tyre holder are available.

This curing press is applicable for curing LTR, TBR, and bias tyres with Nitrogen or Steam used as curing medium.

Tire curing press for LTR and TBR

ITEM		UNIT	SPECIFICATION
ITEM		UNIT	1400	1525	1665
Press size			55’’	63.5’’	65.5’’
Curing cavity No.			2	2	2
Mould Shield ID		mm	Φ1400	Φ1600	Φ1665
Max. mould closing force		KN	2890x2	4300x2	4500x2
Mould height		mm	300-560	254-635	400-650
Center mechanism			BOM	BOM	BOM
Tyre bead diameters		in	17-24	16-24.5	16-24.5
Max. OD of cured tyre	SGM	mm	Φ970	Φ1135	Φ1225
Max. OD of cured tyre	2-piece mold	mm	Φ1070	Φ1270	Φ1310
Max. section width of cured tyre		mm	360	450	450
Max. green tyre height		mm	600	890	890
Designed mold open/close time		s	60	65	65
Max. load of VCL		kg	100	100	100
Max. mould weight		kg	4000	5500	6500
Max. external pressure		MPa	1.4
Max. internal pressure		MPa	2.8
Hydraulic water pressure		MPa	2.1-2.5
Compressed air pressure		MPa	0.7
Control air pressure		MPa	0.35
Machine dimensions		m	6.5x5.0x4.2	4.5x5.2x5.1	4.6x5.2x5.1
Max. tyre type			8.25R20	340/85R24	380/70R24

Tyre curing press for OTR (Mechanical horizontal type)

This curing press is of mechanical dual-mould type with the beam moving vertically and horizontal for tyre loading and unloading. The center mechanism is of BOM type and the curing mould is heated by steam dome. This curing press is equipped with dual-column vertical chuck loader for both tyres loading and unloading, under mounded type stripping unit and tilting type unloading device. As per customer’s request, electric mould-adjusting device, SMO driving device, and green tyre holder are available.

This curing press is applicable for curing agricultural radial and bias tyres with Nitrogen or Steam used as curing medium.

Tyre curing press for OTR

ITEM		UNIT	SPECIFICATION
			1815
Press size			72’’
Curing cavity No.			2
Mould Shield ID		mm	Φ1815
Max. mould closing force		KN	7500x2
Mould height		mm	330-750
Center mechanism			BOM
Tyre bead diameters		in	20-34
Max. OD of cured tyre	SGM	mm	Φ1260
	2-piece mold	mm	Φ1580
Max. section width of cured tyre		mm	620
Max. green tyre height		mm	1450
Designed mold open/close time		s	118
Max. load of VCL		kg	400
Max. mould weight		kg
Max. external pressure		MPa	1.0
Max. internal pressure		MPa	3.0
Hydraulic water pressure		MPa	2.1-2.5
Compressed air pressure		MPa	0.7
Control air pressure		MPa	0.35
Machine dimensions		m	6.1x7.3x8.0
Max. tyre type			23.5-25

Tyre curing press for OTR (Mechanical tilted type)

This curing press is of mechanical type having single cavity with the beam moving vertically and tilting over for tyre loading and unloading. The center mechanism is of BOM type and the curing mould is heated by steam dome. This curing press is equipped with single-column vertical chuck loader for both tyres loading and unloading and pro-bar style mould stripping unit. As per customer’s request, electric mould-adjusting device, SMO driving device, PCI and green tyre holder are available.

This curing press is applicable for curing engineering radial tyres and bias tyres with Nitrogen or Steam used as curing medium.

Tire curing press for OTR

ITEM		UNIT	SPECIFICATION
ITEM		UNIT	1050	1145	1170	1220	1900	2160	2235	2565
Press size			42’’	45’’	46’’	48’’	75’’	85’’	88’’	101’’
Curing cavity No.			2	2	2	2	1	1	1	1
Mould Shield ID		mm	Φ1050	Φ1145	Φ1170	Φ1220	Φ1900	Φ2160	Φ2235	Φ2565
Max. mould closing force		KN	1370X2	1715X2	1715X2	1800X2	6470	8430	9510	13685
Mould height		mm	155-381	200-430	200-460	250-510	380-720	500-870	500-920	600-1070
Center mechanism			BOM	BOM	BOM	BOM	BOM	BOM	BOM	BOM
Tyre bead diameters		in	12-16	12-18	13-20	13-20	20-32	20-38	20-38	24-46
Max. OD of cured tyre	SGM	mm	Φ750	Φ770	Φ810	Φ850	Φ1350	Φ1450	Φ1600	Φ1981
Max. OD of cured tyre	2-piece mold	mm	Φ800	Φ820	Φ850	Φ900	Φ1600	Φ1800	Φ1880	Φ1880
Max. green tyre height		mm	450	550	550	550	1260	1467	1600	1880
Designed mold open/close time		s	25	25	27	27	86	106	106	129
Max. load of VCL		kg	60	60	60	60	600	800	800	1060
Max. mould weight		kg	2500	2500	2500	3000				25000
Max. external pressure		MPa	1.4	1.4	1.4	1.4	0.7	0.7	0.91	0.91
Max. internal pressure		MPa	2.8	2.8	2.8	2.8	2.8	2.8	2.8	2.8
Hydraulic water pressure		MPa	2.1-2.5	2.1-2.5	2.1-2.5	2.1-2.5	2.1-2.5	2.1-2.5	2.1-2.5	1.8-2.1
Compressed air pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Control air pressure		MPa	0.25-0.35	0.25-0.35	0.25-0.35	0.25-0.35	0.35	0.35	0.35	0.35
PCI rim width		mm	76-203	100-285	2.8100-310	100-310	495
Machine dimensions		m	3.6x5.3x3.0	4.6x5.2x4.0	4.6x5.5x4.0	4.7x5.5x3.9	7.2x6.6x6.3	5.1x5.4x7.5	5.4x5.4x7.5	5.4x7.4x8.5
Max. tyre type			215R15	7.00R16	37.50R16	8.25R16	14.00R25	23.5R25	26.5R25	29.5R29

Remark: On all above charts, as Max. OD and Max. section width of cured tyre are related to the mould dimensions, the max. OD shown in the above table are estimated values.
