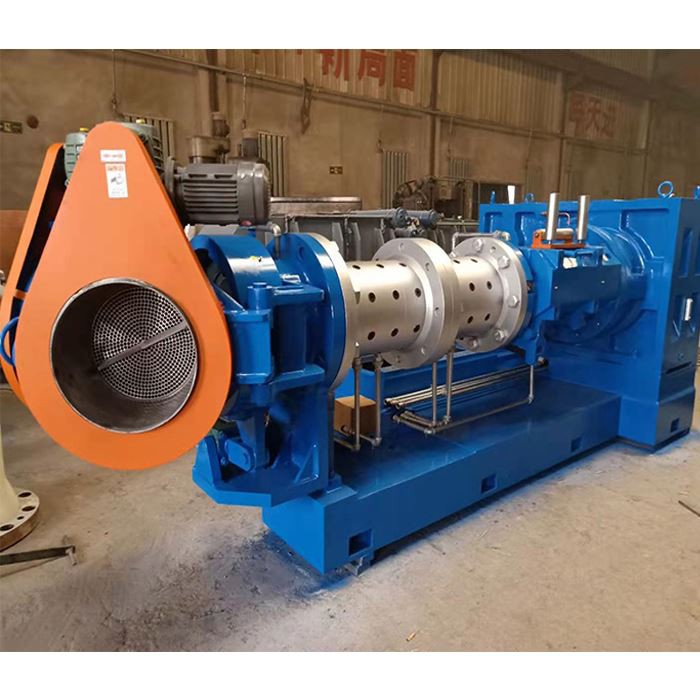

Rubber Strainer Extruder
Rubber strainer extruder is used for filtering/screening impurity from natural rubber and reclaimed rubber, etc.
Main features of rubber strainer extruder,
1.Rubber strainer can be used in different applications, including hot-feeding, cold-feed, single head, double head, etc.
2.The machine head is equipped with a hydraulically operating mechanical cutter, which makes the operations easy and simple.
3.The machine body is equipped with a temperature regulation device. The screw and bushes have enough strength and good wear resistance after nitrogen treatment.
Technical parameter | |||
Model | XJD150 | XJD200 | XJD250 |
Screw diameter (mm) | 150 | 200 | 250 |
L/D ratio | 12 | 12 | 12 |
Screw speed (r/min) | 43 | 33 | 26 |
Cutting device speed (r/min) | 16 | 16 | 11 |
Motor power (Kw) | 185 | 280 | 400 |
Steam pressure (MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Cooling water pressure (MPa) | 0.2 | 0.2 | 0.2 |
Output (Kg/h) | 610 | 860 | 1600 |
Overall dimensions (mm) | 380*1700*1700 | 4900*1900*1850 | 5500*2400*1920 |
Approximate weight (ton) | 7 | 16 | 19 |
