90mm Cold Feed Rubber Extruder / Rubber Extrusion Machine

90mm Cold Feed Rubber Extruder / Rubber Extrusion Machine

The machine is used for extruding half-finished rubber products, such as inner tube, tire tread, rim band, rubber sheet, etc.
Send Inquiry
Product Introduction

With the goal of building a sustainable and international Sidewall Conveyor Belt Production Machine, vertical fabric cutting machine, multi-station dosing system industry, we are committed to providing better products and more considerate services to global consumers. Our excellent corporate culture has a demonstration and incentive effect on all employees and all levels of the enterprise. We hope that our employees will take the goal of creating a world-class enterprise and promote the development of the enterprise while realizing their self-worth. Our company has always been adhering to the enterprise tenet of 'being sincere and doing things well' and is committed to providing perfect service for customers.

Product description

Cold feed rubber extruder is used for extruding half-finished rubber products, such as inner tube, tire tread, rim band, rubber sheet, etc.


Product features:

1.Without warm-up mill for the extruder, investment and production cost can be reduced.

2.Machine optimized screw and barrel design to meet most users requirements of different formulations and different process.

3.The cold feed rubber extruder can equip with different head to extrude different kinds of rubber products.

4.Rubber materials with stationary temperature and viscidity can be fed continuously.

5.The screws and bushes are nitrogenation treated to get enough strength and wear-resistance.

6.It has the characteristics of energy saving, high productivity and good plasitcization.

Specifications

Main Technical Specification of cold feed rubber extruder

Model

XJD-60

XJD-90

XJD-120

XJD-150

XJD-200

XJD-250

Screw dia. (mm)

60

90

120

150

200

250

L/D ratio

12~16

12

12; 14

14; 16

12; 14; 16

12; 14; 16

Max. screw speed (r/min)

80

60

50

43

35

26; 30

Hopper size (mm)

--

130x100

164x130

220x130

260x180

310x230

Total row quantity of pin

7

8

8; 10

10

10; 12

10; 12

Pin quantitv of every single row

6

6

6

8

10

12

Power supply

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

Power (Kw)

22

75-90

90-110

200-220

315-355

355-480

Zone of hot water circulation

--

4

4

4

4

4

Total power of heating hot water circulation (Kw)

--

32

48

48

64

64

Production capacity (kg/h)

120

250~360

600 ~900

1000~1500

1600~2600

3000~3500

Overall dimensions (mm)

L

--

2570

3010

4000

5500

6000

W

--

1335

1320

1810

2100

2400

H

--

1450

1500

1620

1850

1850

Approx. weight (t)

2.5

4.5

6

7.3

12

17

Product Images

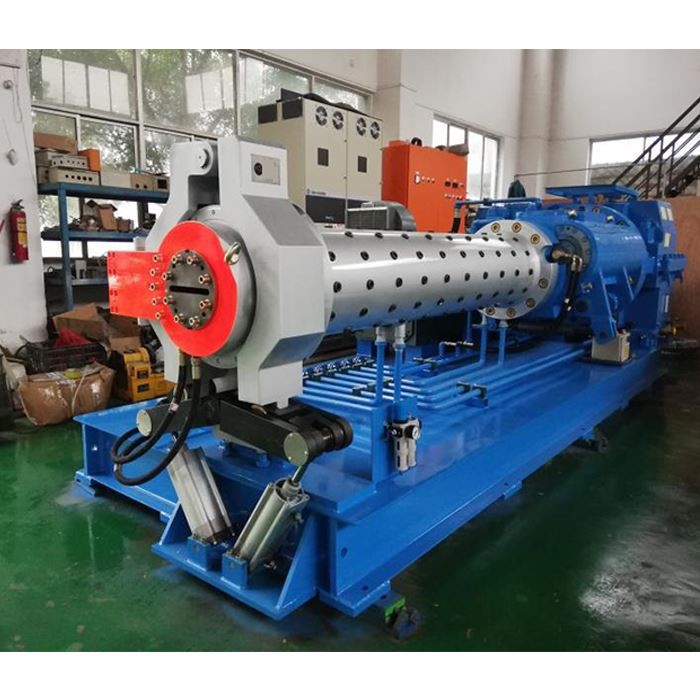

cold feed extruder

rubber cold feed extrudercold feed extruding machine

pin-barrel cold feed extruder

Exhibition

exhibition

FAQ

⒈Q: Can you design new machinery for us?

    A: Yes, we have a professional technology engineers that we can make new machinery according to your requirements. Please tell us your required extruding product shape, size and other requirements if any.


⒉Q: Can we specify outsourcing parts brand?

    A: Yes, if you have brand requirements, please let us know before the quotation. If no special brand requirements, we will quote the machinery according to our standard configuration.


⒊Q: How to guarantee the machinery quality?

    A: During machine manufacturering, we have quality control department responsible for the machine quality. Before machine delivery, we will invite customer come to our factory for machine acceptance.


⒋Q: Under the special condition of Coronovirus, we can not go overseas for machine testing?

    A: Understood the special condition, we can choose video machine acceptance.


⒌Q: How to ensure the machine no damage during machine delivery.

    A: We will choose suitable packing method. Also, customer can specify the packing method for different machines.


⒍Q: What's your warranty period?

    A: We have one year warranty and life-long service. During the warranty period, if any parts broken because of manufacturing defects or other quality problems, we will supply one to one replacement.
